GR300 TRU-SPOT Center Drill

GR300 TRU-SPOT Center Drill Machine

GR300 TRU-SPOT Center Drill MachineMade in USA - Built to Last

Center Drilling Bar StockThis portable center drill machine originated as the MRL100 Tru-Cent'r Drill Machine from Materials Research Laboratory (MRL) of Glenwood, IL. Since 1987, Grem Machining continued to improve on the original Tru-Cent'r Drill Machine with the GR100 Tru-Spot Center Drill Machine. Today, Machining Technology has made even more improvements with the third generation GR300 Tru-Spot Center Drill Machine.

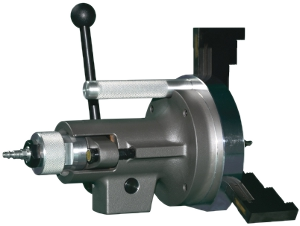

Special Center Drill BitsThe GR300 Tru-Spot Center Drill Machine is a precision center drilling machine for bar stock. It will accurately center shafts from 2 1/2" to 12" diameter in minutes. You can increase holding diameter to 24" with our optional extension jaws. Special diameter jaws above 24" available upon request. Our stocked Center-Bits range in sizes from 5/16" to 1 1/2", which all fit our 12mm collet system.

Units are available with either a .85 HP 1200RPM Air Motor or 1/2 HP 700RPM Milwaukee Electric Drill.

The drill is carried to the work, clamped onto the stock and the center is automatically located. Operate the handle, like any drill press, and the center drilling is complete, eliminating the tie-up of heavier equipment.


GR300 TRU-SPOT Center Drill MachineCenter Drilling Bar Stock
